Description
The ATS-5100 is designed to compensate the charging voltage of Manson PV Charge Controllers and Lead Acid Battery Chargers.
The ATS-5100 is an integrated circuit temperature sensor, sealed in Epoxy mounted on an aluminum plate probe for larger exposure of sensing area.
It has a sensing temperature range of minus 40°C to 100°C .
The sensor IC has a Sensor Gain of 10mV/Degree Centigrade and it is calibrated with the temperature compensation circuit of our PV Charge Controllers and Battery Chargers at 25°C at the rate of 20mV per degree °C change.
A rise of temperature of 10°C will decrease the charging voltage by 200mV, and a decrease of 10°C change will increase the charging voltage by 200mV.
Specification

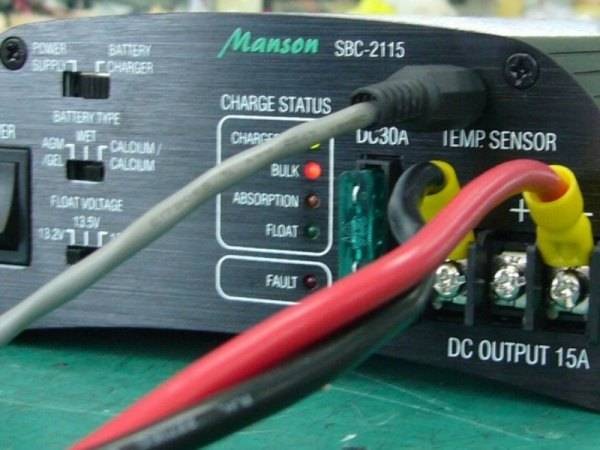

3m long wire with 3.5mm stereo plug
The ATS-5100 is an integrated circuit temperature sensor, sealed in Epoxy mounted on an aluminum plate probe for larger exposure of sensing area.
It has a sensing temperature range of minus 40°C to 100°C .
The sensor IC has a Sensor Gain of 10mV/Degree Centigrade and it is calibrated with the temperature compensation circuit of our PV Charge Controllers and Battery Chargers at 25°C at the rate of 20mV per degree °C change.
A rise of temperature of 10°C will decrease the charging voltage by 200mV, and a decrease of 10°C change will increase the charging voltage by 200mV.
Specification
3m long wire with 3.5mm stereo plug

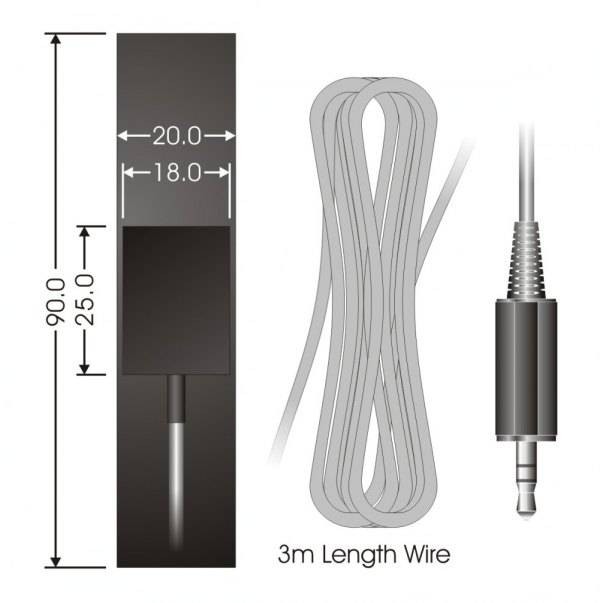

| Aluminum plate probe: | 20X90mm |
| Temperature Min deg. C Cont': | - 40°C |
| Temperature Max deg. C Cont': | 100°C |
| Operating Output Voltage at 25°C: | 2.98 V |
| Sensor Gain: | 10mV/Deg C |
| DYNAMIC Impedance: | 0.6 ohm |
| MAXIMUM Reverse Current: | 15mA |
| MAXIMUM Forward Current: | 10mA |
