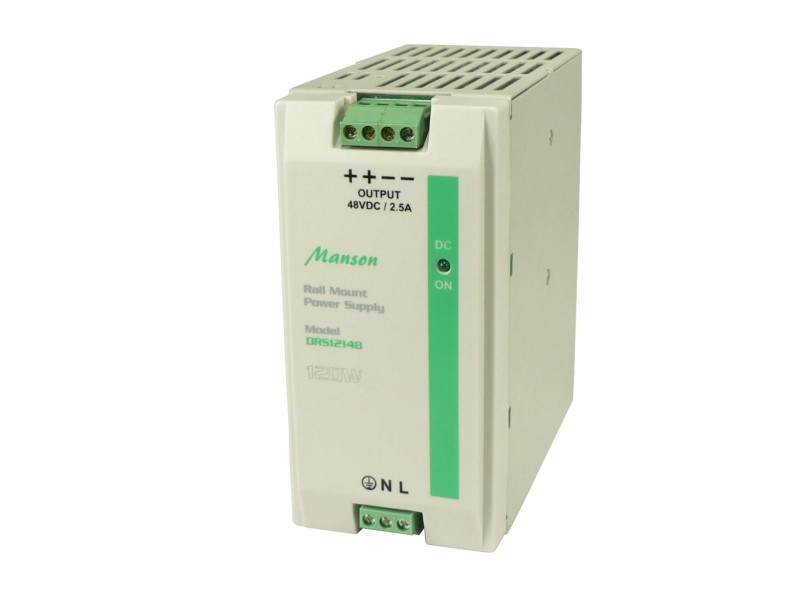

DRS-1210-48 120W Din Rail Switching Mode Power Supply

DRS-1210-12

12V (10.5-14V tuned)

DRS-1210-24

24V (22.5-28V tuned)

DRS-1210-48

48V (44.5-53V tuned)

Feature

Tunable output voltage
Over load protection
Parallel connection

Description

This range of compact DIN mounted switching mode power supplies are designed for a wide range of control equipments which demands good quality regulated DC power source with excellent EMC immunity and electrical performance in an industrial environment. Up to 5 units can be connected in parallel.

Specification

Type
Switching Mode
Input Voltage
90-130Vac 60Hz~ , 180-260Vac 50Hz~
Rated output power
120W
Number of output
1.0
Output Voltage range
48VDC (44.5-53V tunable)
Output Current range
2.5A
Voltage load regulation
≤0.3%
Current load regulation
-
Voltage line regulation
≤0.2%
Current line regulation
-
Output ripple and noise
≤50mVp-p
Voltage Setting Resolution
-
Voltage meter digit and accuracy
Current Set Resolution
-
Current meter digit and accuracy
Extra output Voltage
Auto-range (con)
No
Constant Current mode
Yes
Remote programing
No
Connection type
Preset program
No
Internal program
No
Commend Set
Optimal Efficiency
≥86%@100Vac , ≥87%@230Vac
Cooling Method
Natural Convection
Protections
Overload
Floating ground
Yes
Approvals
CE EMC: CE EN 60950, EN 55022, EN55024, EN 61000
Dimensions (WxHxD)
CE EMC: CE EN 60950, EN 55022, EN55024, EN 61000
Weight
-
