Description

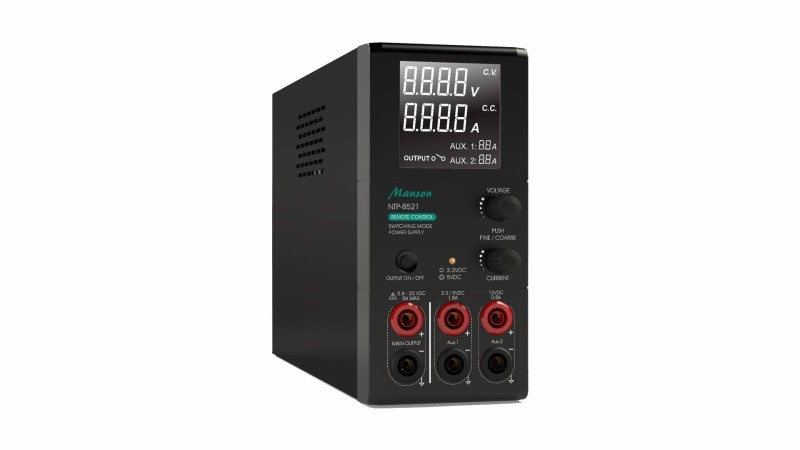

This NTP-85XX series of 100W Remote Programming Switching Mode Power Supplies with 3 isolated outputs, which can be used simultaneously, in combination, and independently.
The variable output is fully programmable via standard USB interface. It comes with an application PC software for remote programming and cyclic tests, Command Sets.
Both novice and advanced users will find this power supply highly adaptable and easy to use.
The first auxiliary output has two selectable voltage making a total of 3 voltages (3.3V/ 5V & 12V) from 2 auxiliary outputs. Each auxiliary output has its own ammeter .
The variable output has 4digit display LCD of voltage and current. The slim tower housing makes it ideal for tight work bench. It is light and conveniently portable with a collapsible handle.
The large and illuminated LCD display provides clear and sharp readings even under dim light. The output power on off switch allows safe and handy operations. The Tracking OVP (Output Over Voltage Protection) ensures a better and tighter protection to voltage sensitive loads. It has good line and load regulations, high efficiency and low ripple & noise that are typical of advanced switching mode power supply. It meets the CE safety standards of EN-62368 and respective EMC standards.
- 3 isolated outputs with one selectable voltage, one fixed voltage and one variable voltage.
- Auxiliary 1 has selectable 3.3/ 5V and Auxiliary 2 has 12V.
- Separate 2digit ammeter for each fixed voltage output.
- 4digit LCD voltage and current meters for the variable output.
- Remote Programmable via USB for the variable output.
- Supplied with application software for cyclic operations, command sets.
- Automatic Cross over CV and CC mode .
- Illuminated LCD indications of A, V, Output On-OFF, CC & CV.
- Coarse & Fine Voltage and Current controls with Rotary encoder control.
- Collapsible handle.
- Output power on off switch at front panel .
- Natural Convection Cooling.
- Tracking OVP (output over voltage protection), Short circuit, overload and over temperature protections.
- Good line, load regulations and low ripple and noise.
- CE approvals.
