Description

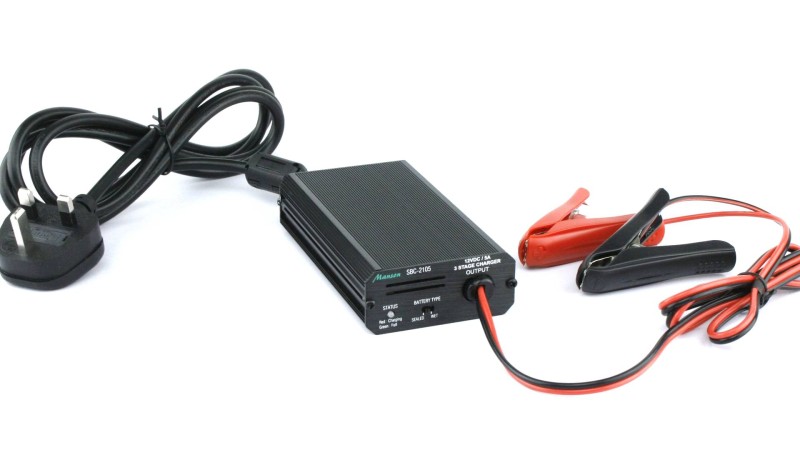

SBC-2105 is a compact, efficient switching mode charger for sealed and wet types of lead acid batter y. In the Bulk Charge stage it supplies in a constant current mode until the battery voltage reaches to the set V absorption level, charging mode then changes to Absorption Stage. The charger keeps the battery at this V absorption level until charging current drops to I float level and charging mode change to Float stage. The battery is then fully charged and the charger can be kept connected to the batter y permanently. In Float Charge stage, the charger will make up for the loss of self discharge of the battery.
The charger has full electronic protections with auto-recovery once the fault has been cleared.
The charger covers a wide range of sealed and wet types of lead acid battery.
The plastic clip-on mounting bracket makes fixing charger easily even in hard to reach tight location.
Electronic Protections with Auto Recovery
The charger has full electronic protections with auto-recovery once the fault has been cleared.
The charger covers a wide range of sealed and wet types of lead acid battery.
The plastic clip-on mounting bracket makes fixing charger easily even in hard to reach tight location.
- 3 Stage (IUOU) Switching Mode lead acid battery charger
- 2 Selectable settings for Sealed and Wet battery
- LED indicators for charging and Full / Float mode
- Wide tolerance for mains voltage (180~260V)
Electronic Protections with Auto Recovery
- Output short circuit output may be short circuited without damage to charger.
- Reverse polarity battery leads may be wrongly connected to battery without damage the charger and battery.
- Over Voltage The charger's output will shut down when output voltage is over 16.5V.
- Over temperature Output will cut off when temperature of charger is too hot.
- Battery Under Voltage Protection-Charger stops charging when battery under 7.5V to avoid charging wrong battery (6V and less) or faulty
- battery.
