Description

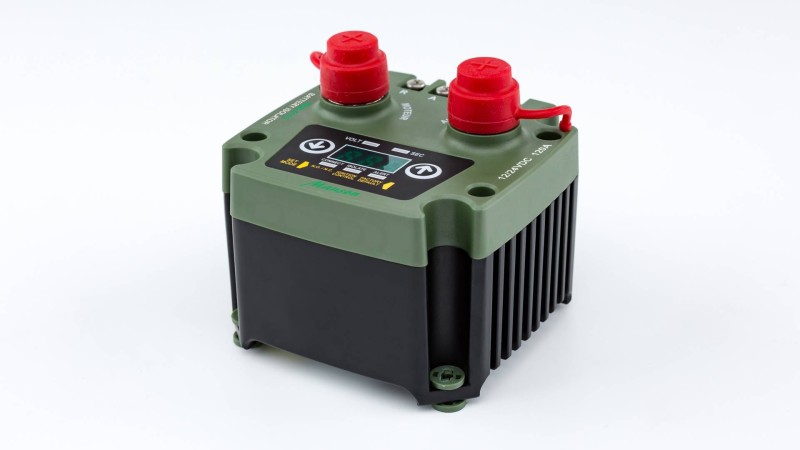

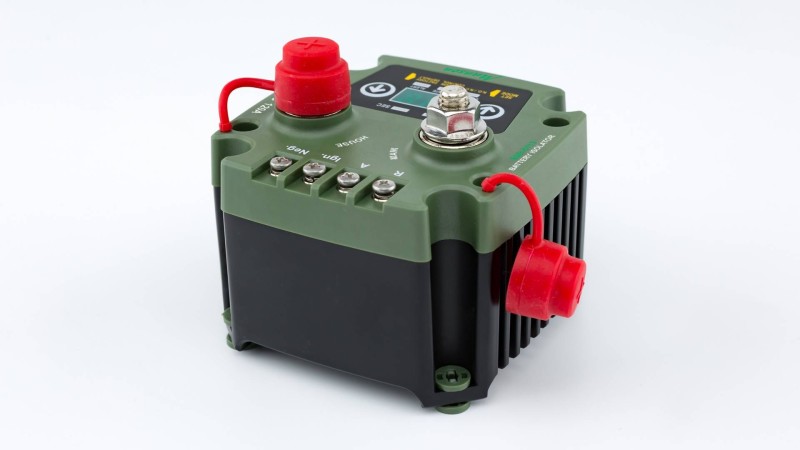

A programmable dual battery isolator with 3digit LED display that shows voltage of main and house battery voltage, On/Off connection mode, 4 protection states. It comes with a remote led module & over-ride button. Most isolators have only two threshold voltage, the connect and isolate voltage of the main battery. This isolator has a third threshold voltage which sets the critical voltage of the main batter y. When voltage drops to the set Alert voltage setting, the remote led module flashes to warn user about the poor state of the main battery.
The reliable Mosfet switching has minimal voltage loss even at high current resulting a much less than diode based isolators. Microprocessor control circuit provides accurate monitoring and finer voltage set points, delay timer settings, fail safe protection and alert function.
The electronics is housed inside a corrosion resistant metal alloy die cast casing with IP67 rating for internal component.
Protections & Alerts
The reliable Mosfet switching has minimal voltage loss even at high current resulting a much less than diode based isolators. Microprocessor control circuit provides accurate monitoring and finer voltage set points, delay timer settings, fail safe protection and alert function.
The electronics is housed inside a corrosion resistant metal alloy die cast casing with IP67 rating for internal component.
- 120 Amp continuous.
- Selectable 12V/ 24V battery system.
- 3digit led display of operation and protection status.
- Display of Main & House battery voltage in isolation mode.
- Supplied with Remote LED Module with Over-ride button.
- Programmable 3 threshold voltages with respective delay time.
- Selectable Ignition Control.
Protections & Alerts
- Under voltage
- Over voltage
- Over current/load /short circuit
- Over temperature
- Remote LED Module Indications
- Isolator ON or OFF status
- Main Battery at Alert low voltage level
- Isolator in Protection Mode
